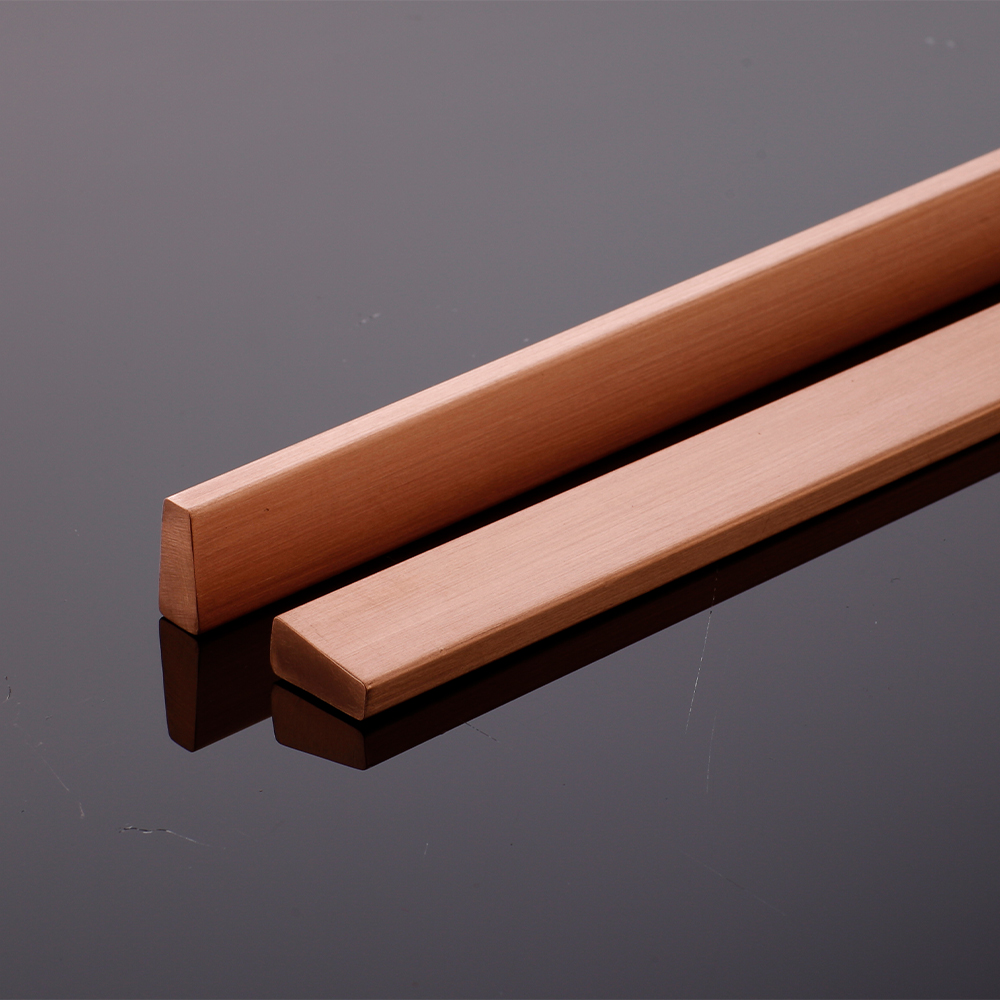

Chromium Zirconium Copper Platoon

The product is made of copper plate by high temperature melting and casting with special metal elements, which effectively improves the electrical conductivity and mechanical properties of the product, especially the high strength performance, and can withstand the high strength continuous working state of various electrical equipment and components.

Excellent electrical conductivity — Typically 80–85% IACS

High tensile strength — Superior to pure copper

Outstanding softening resistance — Maintains strength at elevated temperatures

Good wear resistance — Suitable for sliding electrical contacts

Applications

Resistance Welding Electrodes — Spot welding tips, seam welding wheels

Electrical Switchgear Components — High-voltage circuit breaker contacts

Continuous Casting Molds — For steel and non-ferrous metal production

Plasma and Laser Cutting Nozzles

High-Temperature Electrical Connectors and Busbars

MIG Welding Contact Tips

Electromagnetic Launch Rail Components

Heat Sinks for Power Electronics

Inquire Now NEXT PRODUCT

Technical Specifications

Parameter	Value / Description
Product Name	Chromium Zirconium Copper Platoon
Material Grade	CuCrZr (CW106C / C18150)
Chemical Composition	Cr: 0.5–1.2% / Zr: 0.03–0.3% / Cu: Balance
Electrical Conductivity	≥ 80% IACS (up to 85% IACS after aging)
Thermal Conductivity	≥ 320 W/(m·K)
Tensile Strength	380 – 520 MPa (depending on temper)
Yield Strength	300 – 450 MPa
Elongation	≥ 10%
Hardness	130 – 180 HB
Softening Temperature	≥ 500°C
Product Forms	Flat bar, plate, rectangular bar, custom profile
Thickness Range	5 mm – 100 mm (custom available)
Width Range	20 mm – 500 mm (custom available)
Surface Condition	Mill finish, machined, or polished

Customization Capabilities

We offer custom dimensions, shapes, alloy adjustments, temper options, surface finishes, and cut‑to‑length service per customer specifications. Lead time approximately 20–35 working days.

FAQs

Q1: What makes Chromium Zirconium Copper different from pure copper?

CuCrZr alloy contains small additions of chromium and zirconium, which significantly increase strength and softening resistance while maintaining good electrical conductivity (~80–85% IACS). Pure copper is softer and loses strength rapidly at elevated temperatures.

Q2: What is the typical conductivity of this alloy?

In the aged condition, CuCrZr achieves 80–85% IACS electrical conductivity. This makes it ideal for applications requiring both mechanical strength and efficient current transfer.

Q3: Can this material withstand continuous high-temperature operation?

Yes. The softening temperature of CuCrZr exceeds 500°C, allowing it to maintain mechanical integrity under continuous high-intensity working conditions where pure copper would soften and deform.

Q4: What product forms are available under "Platoon"?

"Platoon" refers to flat and rectangular bar/plate forms. We supply flat bars, plates, and custom-shaped profiles cut to your specified dimensions.

Q5: Do you offer custom sizes and small quantity orders?

Yes. We accept both standard and custom dimension orders. Minimum Order Quantity (MOQ) is typically 100 kg for standard sizes; smaller trial quantities may be accommodated. Please contact us with your specific requirements.
