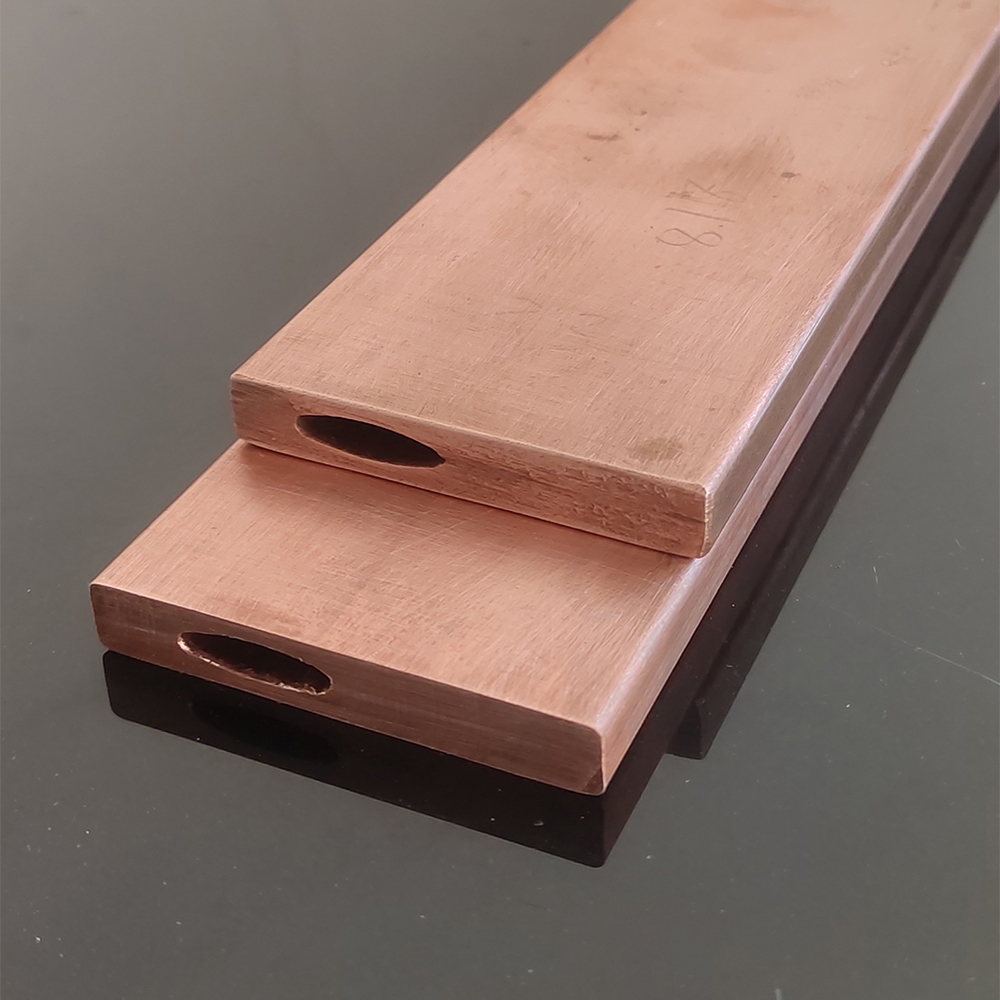

Trapezoidal Copper Platoon

This product has high technical content, especially the extremely low oxygen content, which can reach below 5ppm, and the copper+silver content is above 99.99%. It has high electrical conducti vity, and the electrical conductivity reaches 101 (IACS%). The diameter is 18 mm and can be bent for 120 degrees without any crack.

Oxygen content below 5 ppm — Virtually oxygen‑free, eliminating hydrogen embrittlement risk.

Copper + Silver content above 99.99% — Near‑absolute purity for maximum performance.

Electrical conductivity of 101% IACS — Exceeds international annealed copper standard.

Diameter: 18 mm — Standard round wire profile.
120° Bend without cracking — Excellent formability for tight installation routing.

Inquire Now NEXT PRODUCT

Technical Specifications

Parameter	Value / Description
Product Name	Trapezoidal Copper Platoon
Material Grade	High-Purity Oxygen-Free Copper (Cu-OFE)
Copper + Silver Content	≥ 99.99%
Oxygen Content	≤ 5 ppm
Electrical Conductivity	101% IACS (Minimum)
Diameter	18 mm
Bend Performance	120° bend without surface cracking
Tensile Strength	220 – 260 MPa (Annealed)
Elongation	≥ 35%
Surface Condition	Bright, clean, oxide-free
Packaging	Spools, coils, or custom pallets

Applications

This high-purity conductor is ideally suited for:

Superconducting magnet current leads and cryogenic busbars

High‑energy physics equipment and particle accelerator components

Medical imaging systems (MRI, NMR)

High‑frequency induction heating coils

Vacuum furnace components and specialized welding electrodes

Aerospace and defense power distribution systems

FAQs

Q1: What does 101% IACS conductivity mean?

IACS stands for International Annealed Copper Standard. 101% IACS means the material's conductivity is 1% higher than the standard reference for pure annealed copper, achievable only through extreme purity and optimized processing.

Q2: Why is oxygen content below 5 ppm important?

In high-temperature or hydrogen-rich environments, standard copper with higher oxygen content can suffer from hydrogen embrittlement, leading to cracking and failure. ≤5 ppm oxygen eliminates this risk.

Q3: Can this product be bent 120 degrees without cracking?

Yes. Our specialized annealing process imparts excellent ductility, allowing a 120° bend without surface cracking under standard bending practices.

Q4: What is the typical lead time for 18 mm diameter orders?

Lead time is generally 10–15 working days for standard quantities. Larger volumes or custom specifications may require additional time.

Q5: Is custom diameter or trapezoidal cross-section available?

Yes, we can produce custom diameters and true trapezoidal cross‑sections per customer drawings. Please contact our engineering team with your requirements.
