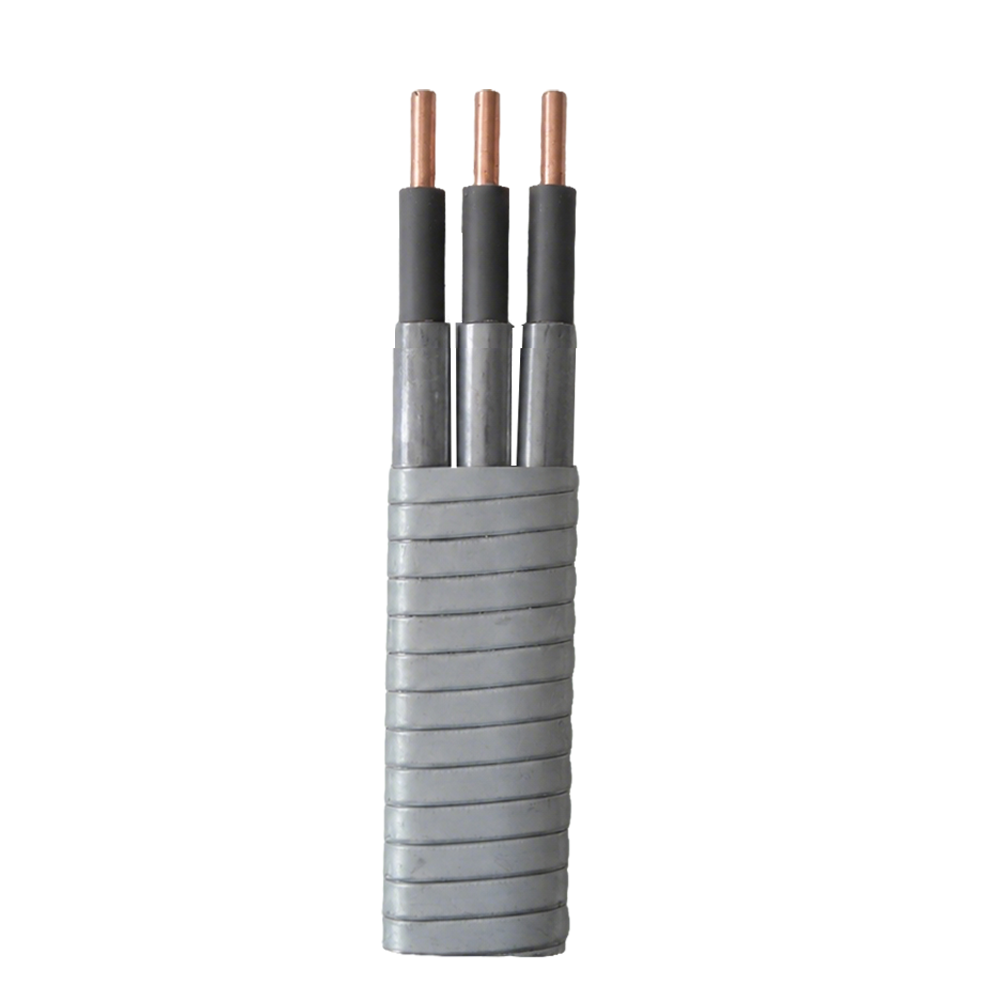

QYEQ Type Electric Submersible Pump (ESP) Power Cable

APPLICATION

This product is suitable for supplying power to submersible oil pump units with rated voltage less than 3KV or less than 6KV.

OPERATING CHARACTERISTICS

Conductor long-term working Temperature120°C, with excellent oil and heat resistance and corrosion resistance.

TYPE AND NAME

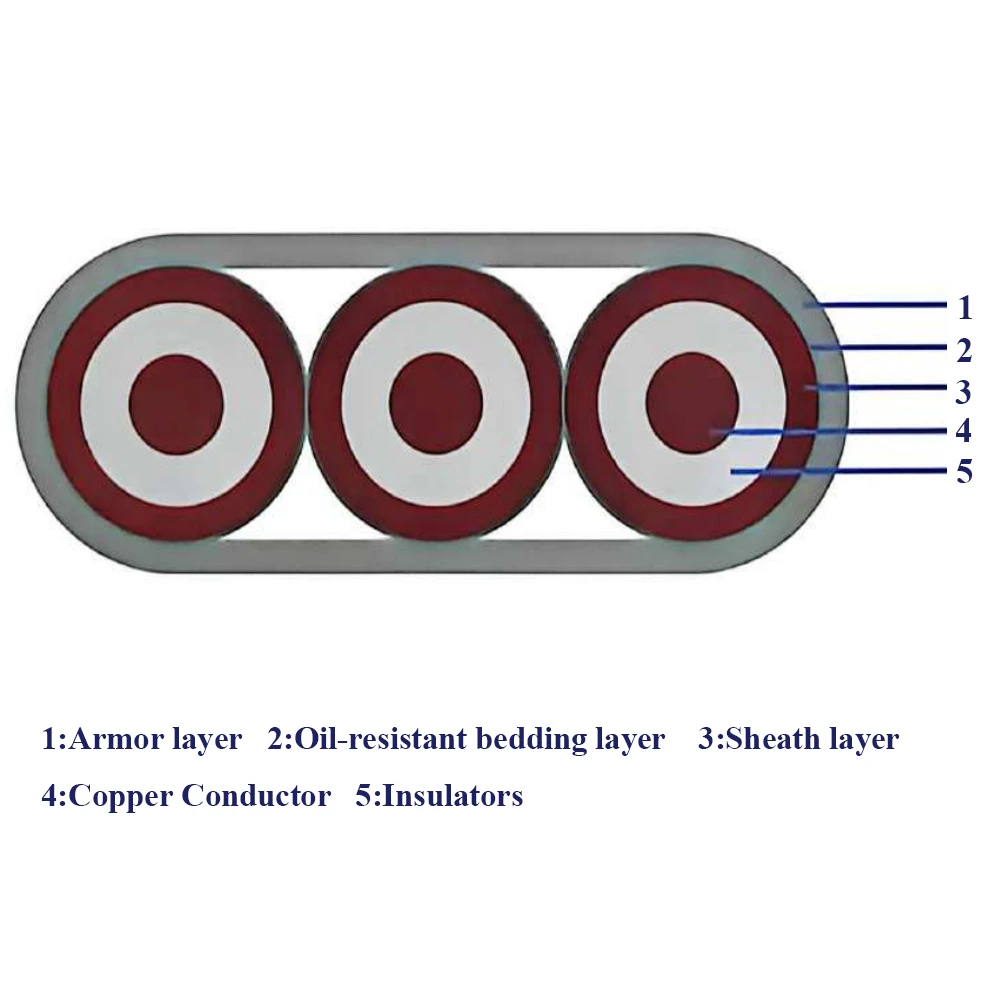

Ethylene-propylene rubber insulation, lead sheath, PTFE tape/fiber tape wrapped around

Galvanized (stainless steel, Monel) steel belt armored flat submersible oil pump power cable.

PRODUCTION RANGE OF CABLE

Voltage: 3KV 4KV 5KV 6KV
Temperature: 120°C
Implementation standards: GB/T16750-2015, APIRP 11S6

Inquire Now NEXT PRODUCT

Technical Specifications

Technical Specifications
Cores	Nominal cross section area AWG/mm²	Number of conduct or roots diametermm mm	Conductor DCresistance20°C≤Ω/Km	Insulation nominal thickness mm		Nominal thickness of the sheath mm		Cable overall size and weight(flat cable)
			Conductor DCresistance20°C≤Ω/Km	Insulation nominal thickness mm		Nominal thickness of the sheath mm		3KV		5KV
			Tin-plated	3KV	5KV	3KV	5KV	mmxmm	Kg/km	mmxmm	Kg/Km
3	6/13.2	1/4.12	1.40	1.39	2.3	1.0	1.0	12.5x33.5	2110	13.5x36	2288
3	5/16	1/4.62	1.16	1.15	2.3	1.0	1.0	13x36	2211	14x37.5	2410
3	4/20	1/5.19	0.86	0.84	2.3	1.0	1.0	14x38	2442	14.5x39	2730
3	2/33	1/6.54	0.56	0.55	2.3	1.0	1.0	15x43	3116	16x43	3320
3	1/42	1/7.35	0.44	0.44	2.3	1.0	1.0	16x45	3544	17x47	3850

Technical Specifications
Nominal cross section area mm²/AWG	Conductor nominal diameter	1.9mm Insulation resistance MΩ·Km	1.9mm Leakage current μA/ (Kv·Km)	2.3mm Insulation resistance MΩ·Km	2.3mm Leakage current μA/ (Kv·Km)	DC with stand voltage 5 minutes	DC with stand voltage 5 minutes
Nominal cross section area mm²/AWG	Conductor nominal diameter	1.9mm Insulation resistance MΩ·Km	1.9mm Leakage current μA/ (Kv·Km)	2.3mm Insulation resistance MΩ·Km	2.3mm Leakage current μA/ (Kv·Km)	3KV	5KV
13.2/6	4.12	1529	0.65	1777	0.56	27	35
16/5	4.62	1400	0.71	1633	0.61	27	35
20/4	5.19	1278	0.78	1495	0.67	27	35
33/2	6.54	1060	0.94	1248	0.80	27	35
42/1	7.35	962	1.04	1136	0.80	27	35

DELIVERY REQUIREMENTS

Can be delivered in a minimum of 1000 meters, packed in all-steel corrugated trays.

STORAGE AND TRANSPORTATION INSTRUCTIONS

For cables delivered in rolls, the outermost cable, the distance from the edge of the diameterof the corrugated all-steel cable tray is 100mm lower, and the cable is not allowed to bebumped or twisted. Both ends of the cable do moisture-proof.

FAQs

Q1: What do the abbreviations in submersible pump cable model codes mean?

Our submersible pump cable model codes follow a standardized naming system. Each letter in the model designation represents a specific structural feature or material used in the cable construction.

1. Series Code

QY – General submersible pump cable
QYJ – Lead-sheathed submersible pump cable

2. Shape Code

Y – Round cable
Flat cable – No code designation

3. Insulation Material Code

P – Modified polypropylene insulation
YJ – Cross-linked polyethylene (XLPE) insulation
YF – Polyimide-F46 composite film & FEP composite insulation
E – Ethylene propylene rubber (EPR) insulation
YE – Polyimide-F46 composite film & EPR composite insulation

4. Sheath (Including Inner Sheath) Material Code

Q – Alloy lead sheath
H – Hypalon (chlorosulfonated polyethylene) sheath
N – Nitrile rubber sheath
E – Ethylene propylene rubber sheath
F – Nitrile-PVC compound sheath

5. Armor Layer Code

M – Monel steel tape armor
FD – Stainless steel tape armor
Galvanized steel tape armor – No code designation

Q2: What is an ESP cable?

ESP cable (Electric Submersible Pump cable) is used to supply power to downhole electric submersible pumps in oil, gas, and water wells. It is designed to withstand high temperature, pressure, and corrosive well conditions.

Q3: What is the difference between round and flat ESP cable?

Round ESP cable is commonly used in standard well conditions with higher mechanical strength. Flat ESP cable is designed for narrow annulus spaces between tubing and casing, making installation easier in limited space wells.

Q4: What materials are used in ESP cable insulation and sheath?

ESP cables use materials such as polypropylene (PP), XLPE, EPR, and polyimide-FEP for insulation. Sheath and armor materials include nitrile rubber, EPR, Hypalon, lead alloy, and stainless steel tape for protection against heat, oil, and corrosion.

Q5: How do I choose the right ESP cable?

Selection depends on well depth, temperature, voltage, and chemical conditions. High-temperature or corrosive environments require advanced insulation systems and stronger armor protection to ensure reliable long-term operation.
