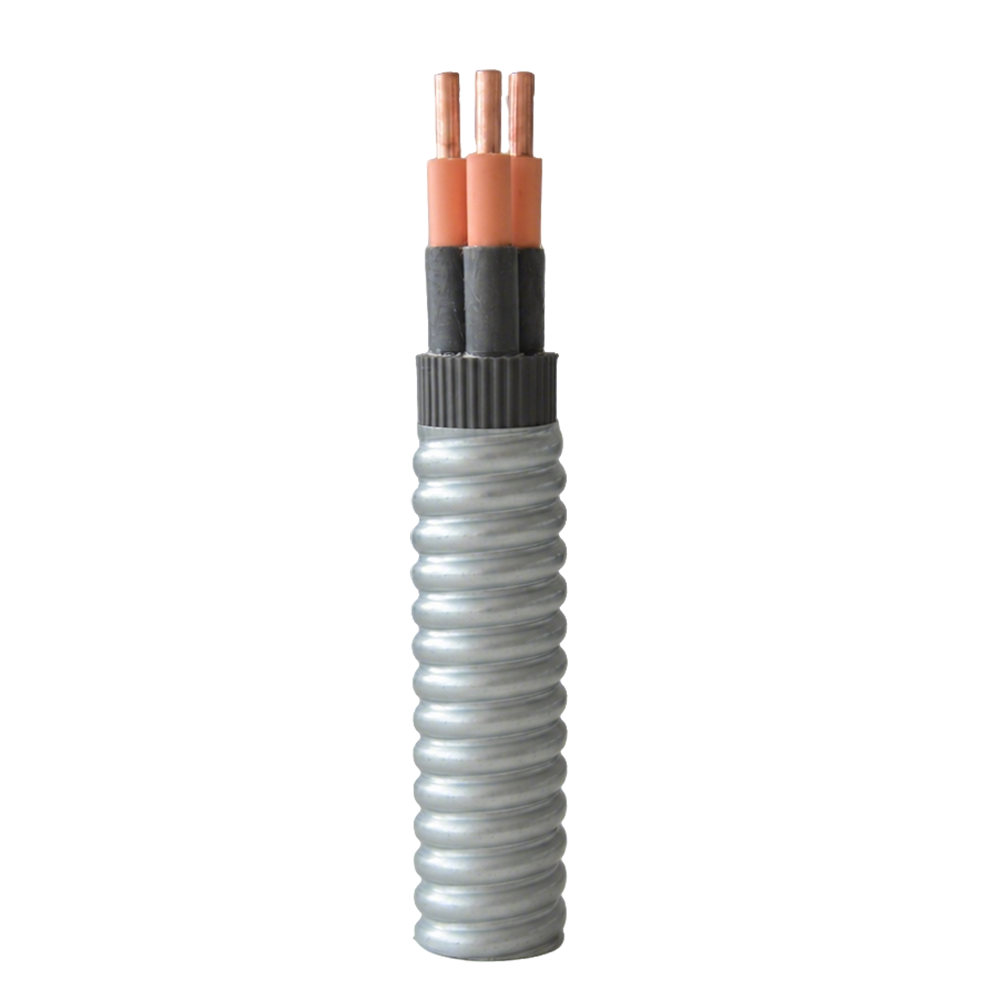

QYEQNY (QYYEQNY) Type ESP Power Cable

APPLICATION:

This product is suitable for supplying power to submersible oil pump units with rated voltage less than 3KV or less than 6KV.

OPERATING CHARACTERISTICS

Conductor long-term working Temperature120°C, with excellent oil and heat resistance and corrosion resistance.

TYPE AND NAME

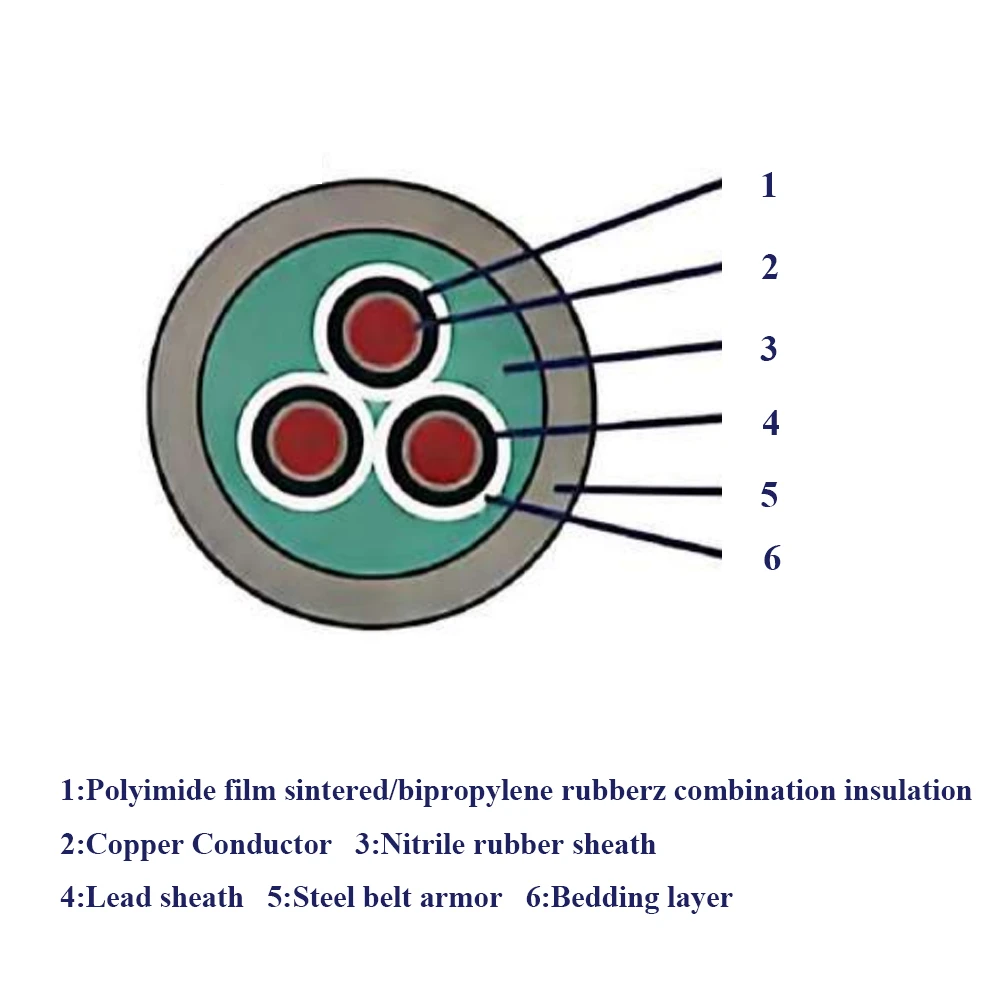

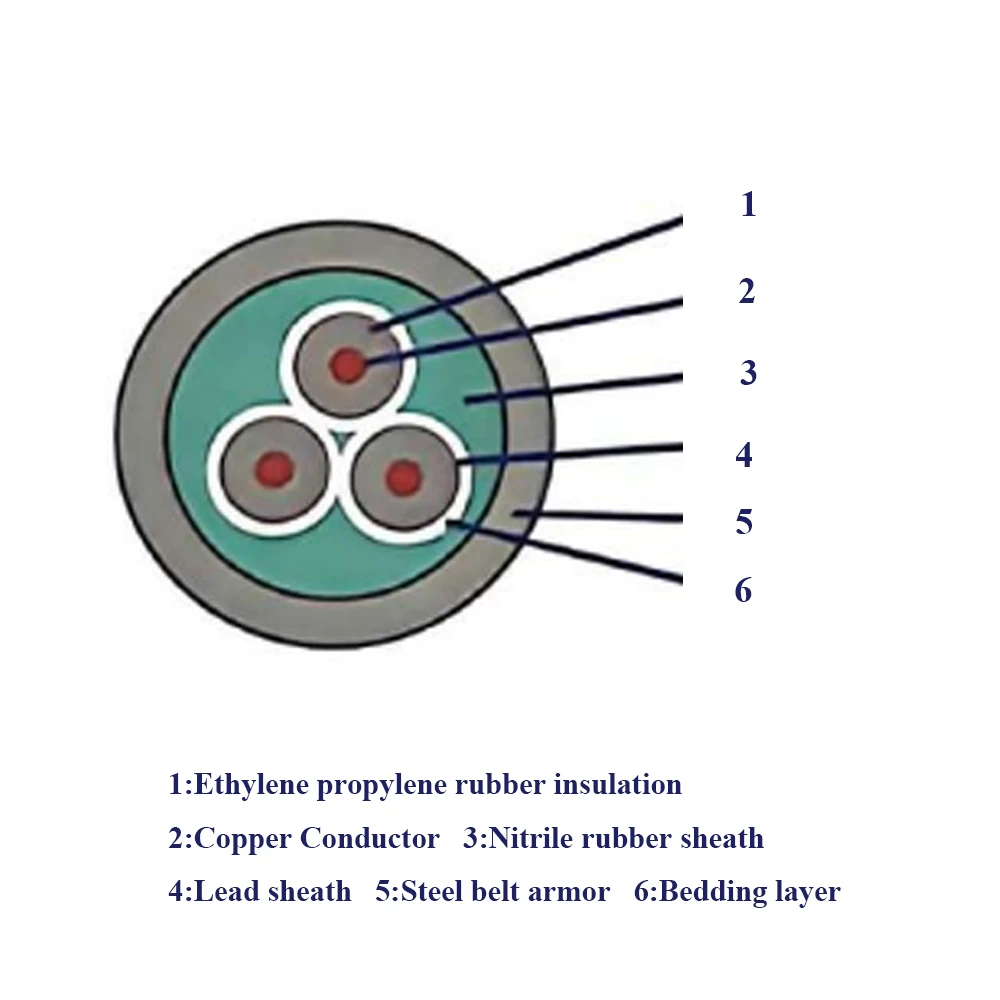

EPDM rubber insulation, lead inner sheath, fiber tape wrapping, nitrile rubber outer sheath,Galvanized (stainless steel, Monel) steel belt armored round submersible oil pump power cable.

PRODUCTION RANGE OF CABLE

Voltage: 3KV 4KV 5KV 6KV

Temperature: 120°C

Implementation standards: GB/T16750-2015, APIRP 11S6

Inquire Now NEXT PRODUCT

Technical Specifications

Cores	Nominal cross section area AWG/mm²	Number of conduct or roots diametermm mm	Conductor DC resistance20°C≤Ω/Km	Insulation nominal thickness mm		Nominal thickness of the sheath mm		Cable overall size and weight(round cable)
			Conductor DC resistance20°C≤Ω/Km	Insulation nominal thickness mm		Nominal thickness of the sheath mm		3KV		5KV
			Tin-plated	3KV	5KV	3KV	5KV	mm	Kg/km	mm	Kg/Km
3	5/16	1/4.62	1.15	1.9	2.3	1.0	2.0	32	2550	33	2772
3	4/20	1/5.19	0.84	1.9	2.3	1.0	2.0	34	2770	35	3020
3	2/33	1/6.54	0.55	1.9	2.3	1.0	2.0	36	3440	37	3645
3	1/42	1/7.35	0.44	1.9	2.3	1.0	2.0	38	3840	39	4050

Nominal cross section area mm²/AWG	Conductor nominal diameter	1.9mm Insulation resistance MΩ·Km	1.9mm Leakage current μA/ (Kv·Km)	2.3mm Insulation resistance MΩ·Km	2.3mm Leakage current μA/ (Kv·Km)	DC with stand voltage 5 minutes
Nominal cross section area mm²/AWG	Conductor nominal diameter	1.9mm Insulation resistance MΩ·Km	1.9mm Leakage current μA/ (Kv·Km)	2.3mm Insulation resistance MΩ·Km	2.3mm Leakage current μA/ (Kv·Km)	3KV	5KV
16/5	4.62	1400	0.71	1633	0.61	27	35
20/4	5.19	1278	0.78	1495	0.67	27	35
33/2	6.54	1060	0.94	1248	0.80	27	35
42/1	7.35	962	1.04	1136	0.88	27	35

DELIVERY REQUIREMENTS

Can be delivered in a minimum of 1000 meters, packed in all-steel corrugated trays.

STORAGE AND TRANSPORTATION INSTRUCTIONS

For cables delivered in rolls, the outermost cable, the distance from the edge of the diameter of the corrugated all-steel cable tray is 100mm lower, and the cable is not allowed to be bumped or twisted. Both ends of the cable do moisture-proof.

FAQs

Q1: What do the abbreviations in submersible pump cable model codes mean?

Our submersible pump cable model codes follow a standardized naming system. Each letter in the model designation represents a specific structural feature or material used in the cable construction.

1. Series Code

QY – General submersible pump cable
QYJ – Lead-sheathed submersible pump cable

2. Shape Code

Y – Round cable
Flat cable – No code designation

3. Insulation Material Code

P – Modified polypropylene insulation
YJ – Cross-linked polyethylene (XLPE) insulation
YF – Polyimide-F46 composite film & FEP composite insulation
E – Ethylene propylene rubber (EPR) insulation
YE – Polyimide-F46 composite film & EPR composite insulation

4. Sheath (Including Inner Sheath) Material Code

Q – Alloy lead sheath
H – Hypalon (chlorosulfonated polyethylene) sheath
N – Nitrile rubber sheath
E – Ethylene propylene rubber sheath
F – Nitrile-PVC compound sheath

5. Armor Layer Code

M – Monel steel tape armor
FD – Stainless steel tape armor
Galvanized steel tape armor – No code designation

Q2: What is an ESP cable?

ESP cable (Electric Submersible Pump cable) is used to supply power to downhole electric submersible pumps in oil, gas, and water wells. It is designed to withstand high temperature, pressure, and corrosive well conditions.

Q3: How do I choose the right ESP cable?

Selection depends on well depth, temperature, voltage, and chemical conditions. High-temperature or corrosive environments require advanced insulation systems and stronger armor protection to ensure reliable long-term operation.

Q4: What materials are used in ESP cable insulation and sheath?

ESP cables use materials such as polypropylene (PP), XLPE, EPR, and polyimide-FEP for insulation. Sheath and armor materials include nitrile rubber, EPR, Hypalon, lead alloy, and stainless steel tape for protection against heat, oil, and corrosion.

Q5: What is the difference between round and flat ESP cable?

Round ESP cable is commonly used in standard well conditions with higher mechanical strength. Flat ESP cable is designed for narrow annulus spaces between tubing and casing, making installation easier in limited space wells.
