Imported Lumileds Light Source featuring high brightness, low lumen depreciation, and long service life.
Equipped with international top-tier brand drivers, offering over-temperature protection, high conversion efficiency, high power factor, and strong surge protection (1–10V, DALI 2.0 control options available).
The housing is made of ADC12 die-cast aluminum, providing excellent thermal conductivity to rapidly dissipate heat, balance internal and external temperatures, reduce thermal differences, and lower LED junction temperature—effectively minimizing light decay.
Fitted with a high-performance optical PC lens, with IK08 impact resistance rating, UV resistance, and up to 94% light transmittance.
Supports professional light distribution angles: 60°, 90°, and 110°.
Multiple installation options: hook mounting, chain suspension, bracket mounting, and pendant mounting.
Widely used in warehouses, workshops, supermarkets, underground parking lots, logistics centers, and indoor sports facilities.
Technical Specifications
|
Model No. |
BSD-UFO-K100W |
BSD-UFO-K150W |
BSD-UFO-K200W |
BSD-UFO-K240W |
BSD-UFO-K300W |
|
Rated Power |
100W |
150W |
200W |
240W |
300W |
|
Input Voltage |
AC100-277V 50/60Hz |
||||
|
LED Brand |
Lumileds |
||||
|
CRI |
Ra > 80 (70, 90 Optional) |
||||
|
LED Quantity |
210PCS×2835 |
300PCS×2835 |
420PCS×2835 |
420PCS×2835 |
616PCS×2835 |
|
380PCS×2835 |
680PCS×2835 |
1020PCS×2835 |
1020PCS×2835 |
1360PCS×2835 |
|
|
Lumen Output |
15000lm/17000lm |
22500lm/25500lm |
30000lm/34000lm |
36000lm/40800lm |
45000lm/51000lm |
|
19000lm |
28500lm |
38000lm |
45600lm |
57000lm |
|
|
CCT |
3000K/4000K/5000K/5700K/6500K |
||||
|
Beam Angle |
60°/90°/110° |
||||
|
IK Rating |
IK08 |
||||
|
IP Rating |
IP66 |
||||
|
Lifespan |
50000Hrs |
||||
|
Dimension |
260*111mm |
306*122mm |
362*127mm |
362*127mm |
408*132mm |
|
Certification |
CQC/TUV/CB/CE/SAA/FCC/RoHS |
||||
FAQs
Q1: Does this high bay light support power and color temperature adjustment?

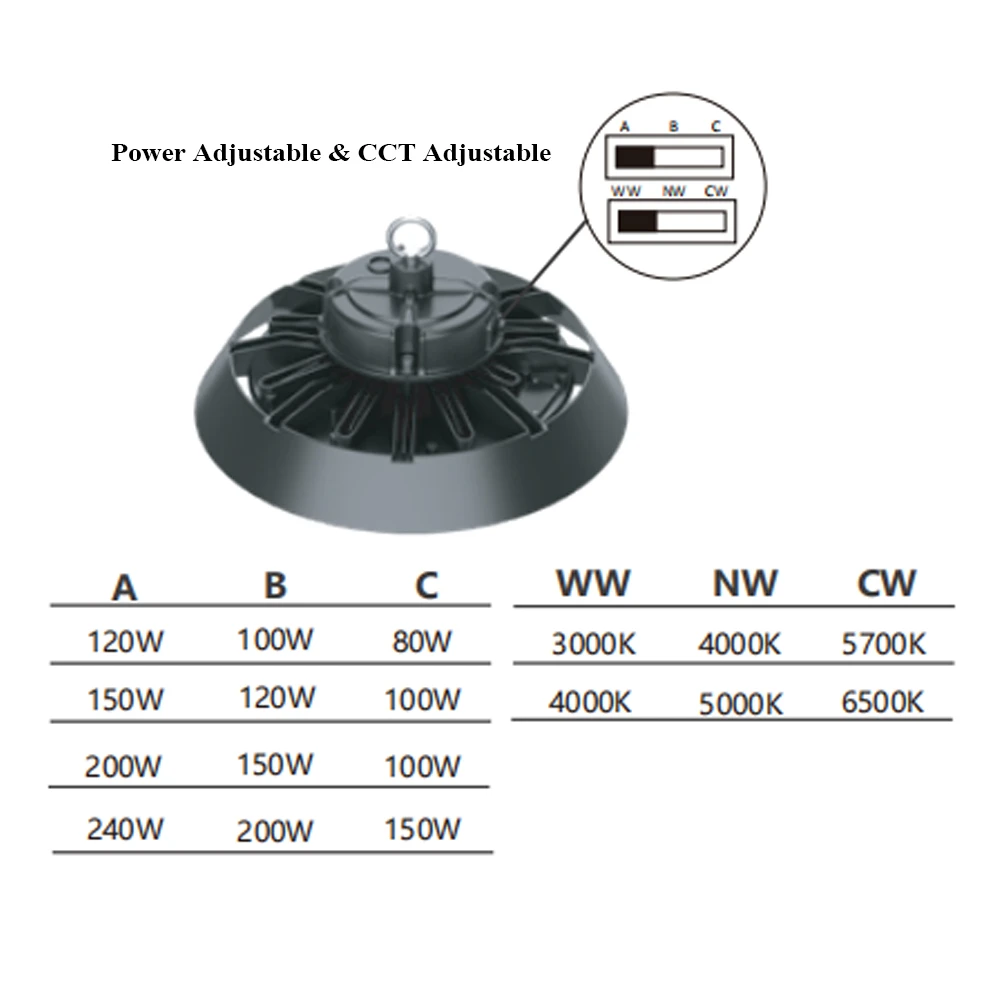

Yes, it supports adjustable power and color temperature. Power options: 100W/150W/200W/240W/300W. Color temperature: 3000K/4000K/5000K/5700K/6500K.
Q2: What are the protection and impact resistance ratings? Is it suitable for humid environments?
It has IP66 protection rating and IK08 impact resistance rating, dustproof and waterproof, ideal for workshops, warehouses, parking garages and other harsh environments.
Q3: What light source and driver are adopted? How long is the service life?
It uses imported Lumileds light source and world-class brand driver. Service life is up to 50,000 hours with low lumen depreciation.
Q4: What installation methods are available? Which scenarios are applicable?
Support hook, chain, bracket and pole installation. Suitable for warehouses, workshops, supermarkets, parking lots, logistics centers, indoor stadiums, etc.
Q5: Does it support dimming? What certifications does it have?
Support 1-10V and DALI 2.0 dimming. Certified with CCC, TUV, CB, CE, SAA, FCC, RoHS.
