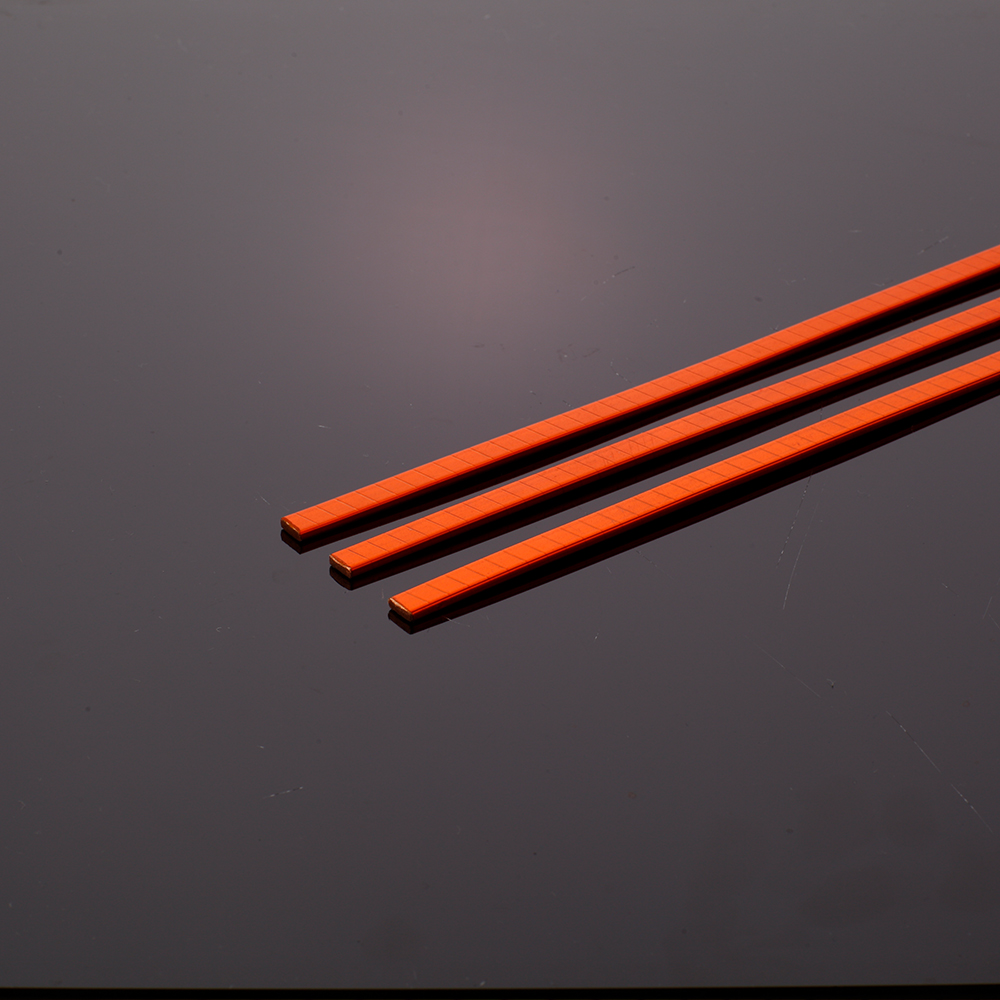

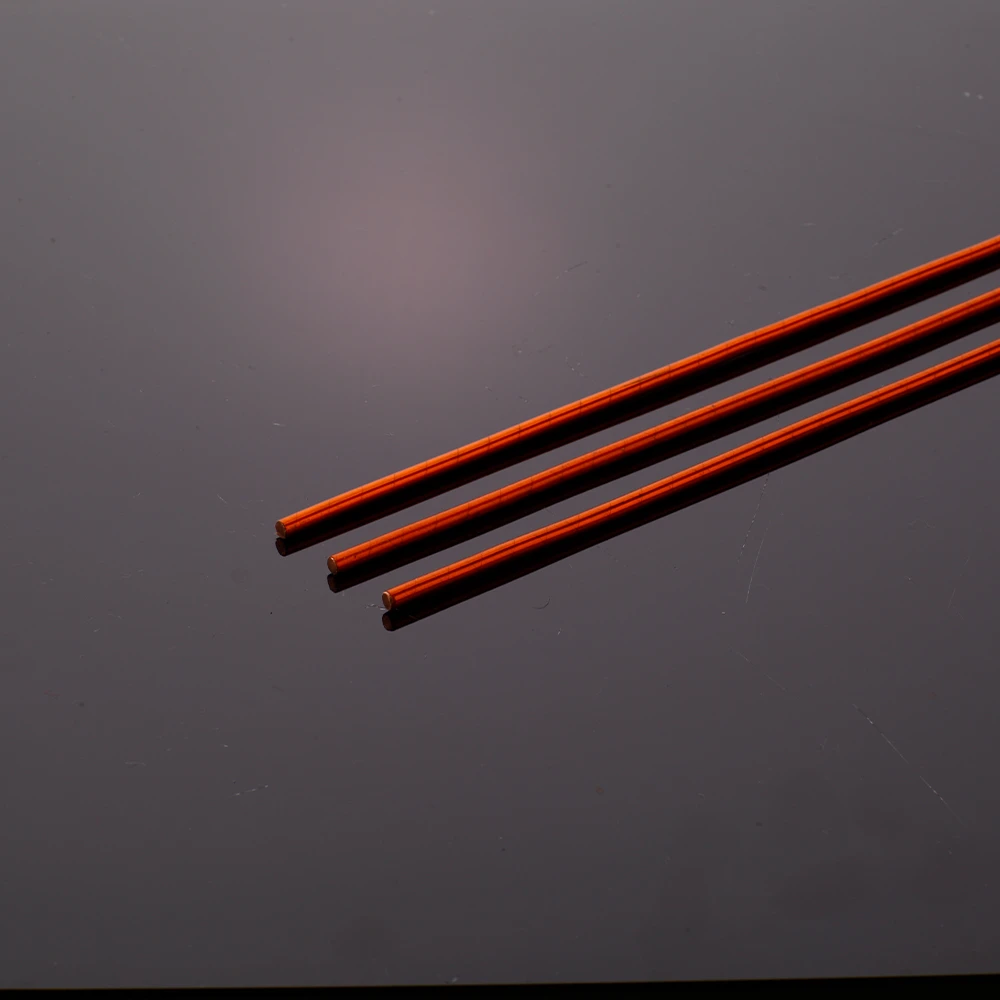

Polyimide–F46 composite film insulated copper magnet wire available in round and rectangular types. Designed for high temperature, high voltage, and demanding industrial environments. Excellent thermal stability, insulation performance, and mechanical strength, widely used in motors, transformers, oil & gas, and aerospace applications.
Technical Specifications
| Technical Specifications | |
|---|---|
| Item | Specification |
| Product Name | Polyimide–F46 Composite Film Insulated Copper Wire |
| Conductor Type | Round / Rectangular (Flat) |
| Conductor Material | Oxygen-free copper / high purity copper |
| Insulation Material | Polyimide + F46 composite film |
| Temperature Class | Class 200°C – 220°C (typical) |
| Voltage Rating | High voltage insulation grade |
| Conductor Size Range | Customized (Round & Rectangular available) |
| Shape Tolerance | High precision tolerance (±0.01 mm – ±0.05 mm) |
| Insulation Thickness | Customized (single or multi-layer wrapping) |
| Thermal Resistance | Excellent high-temperature stability |
| Mechanical Strength | High tensile and bending strength |
| Surface Finish | Smooth, uniform insulation layer |
| Processing Method | Film wrapping / precision winding |
| Packaging | Spool / coil / wooden drum |
| Customization | Available (size, thickness, structure) |
Application
Polyimide–F46 composite film insulated copper wire is widely used in demanding electrical and thermal environments, including:
FAQs
Q1: What types of products are included in this series?
This product range includes enameled copper flat wire, fiberglass insulated wires, film-wrapped copper wires, and high-performance composite insulated copper flat and round wires designed for demanding electrical applications.
Q2: What are the main applications of these products?
They are widely used in high-efficiency motors, generators, transformers, submersible motor systems, rail transit traction motors, wind power equipment, and industrial electrical systems requiring high reliability.
Q3: What temperature ratings are available?
Depending on the insulation system, the products are generally suitable for Class F (155°C), Class H (180°C), and higher temperature environments, ensuring stable performance under continuous thermal stress.
Q4: Can the products be customized according to specific requirements?
Yes. We offer customized solutions in terms of conductor size, insulation structure, temperature class, voltage level, and mechanical performance according to customer application needs.
Q5: What advantages do these products offer compared to standard copper wires?
They provide superior electrical insulation, high thermal stability, excellent mechanical strength, strong resistance to moisture, radiation, and thermal shock, making them suitable for extreme and high-demand environments.
